40QMH (1997)
Partie Electrique 2

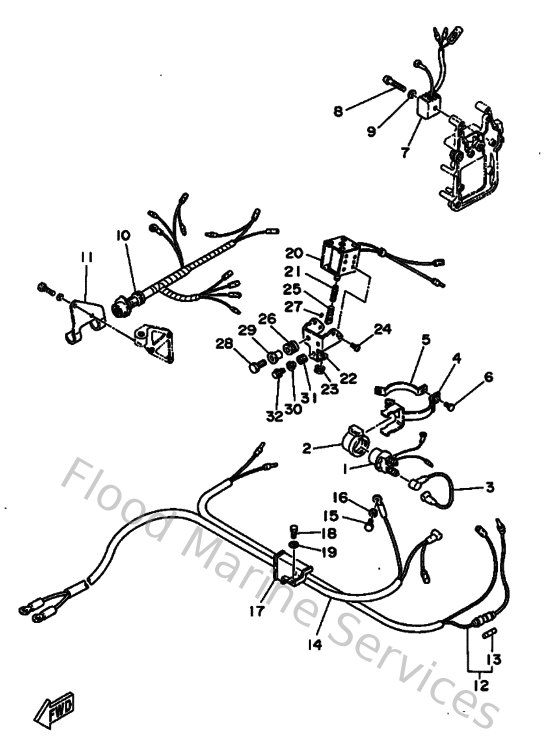

Diagram: Partie Electrique 2
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
4
6E9819450100
Plate, Switch Fitting
Loading…
↗
5
6E9819530000
Stay, Relay
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
664819706100
Rectifier assembly
Loading…
↗
8
985800552500
Screw, panhead (a93)
Loading…
↗
9
929900560000
Washer, plain (646)
Loading…
↗
12
6E9819710000
Wire Lead
Loading…
↗
13
682821510000
Fuse
Loading…
↗
14
6E9821051100
Battery cable
Loading…
↗
15
973800801200
Bolt, hexagon
Loading…
↗
16
929900810000
Ybs67-8 washer, spring
Loading…
↗
18
970800601200
Bolt(gh1)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
6E9861110100
Coil, solenoid
Loading…
↗
21
682861160000
Wire, pull
Loading…
↗
22
6E9861120000
Stay, Solenoid
Loading…
↗
23
904801015500
Grommet(664)
Loading…
↗
24
979800510800
Screw, with washer
Loading…
↗
25
682861170000
Hook, wire pull
Loading…
↗
26
6A0823170000
Damper, ignition coil
Loading…
↗
27
932100326100
O-ring (663)
Loading…
↗
28
970950602500
Bolt
Loading…
↗
29
624425420000
Collar
Loading…
↗
30
9038706M4300
Coller (6e9)
Loading…
↗
31
9048013M2400
Grommet (6e9)
Loading…
↗
32
958950601600
Bolt, flange deep recess
Loading…
↗
