F40AET (2001)
Power Trim & Tilt Assy 1

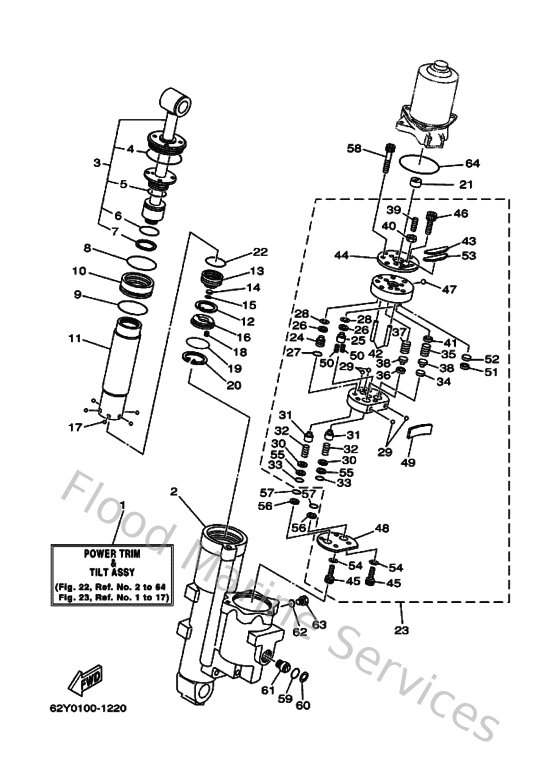

Diagram: Power Trim & Tilt Assy 1
Parts List
Reference
Description
Price
1
62Y43800004D
Power trim & tilt assembly
Loading…
↗
2
CS34380K0000
Cylinder Tilt Sub assembly
Loading…
↗
3
62X438100100
Tilt piston sub assembly
Loading…
↗
4
62X438610000
O-ring
Loading…
↗
5
62X438620000
O-ring
Loading…
↗
6
932102937500
O-ring (j10)
Loading…
↗
7
62X438710000
Ring, back up
Loading…
↗
8
932104438300
O-ring (705)
Loading…
↗
9
932104880000
O-ring
Loading…
↗
10
62X4388A0000
Piston, trim
Loading…
↗
11
CS3224710000
Cylinder, shock absorber
Loading…
↗
12
67F438750000
Ring, snap
Loading…
↗
13
62Y438140000
Piston, Free
Loading…
↗
14
6H14384G1100
Seal, relief valve
Loading…
↗
15
61A438750000
Ring, snap
Loading…
↗
16
62X438990000
Plate stopper
Loading…
↗
17
935031600300
Ball
Loading…
↗
18
62X4384H0000
Spring
Loading…
↗
19
1UF224340000
Plate, valve 1
Loading…
↗
20
62X438750000
Ring, snap
Loading…
↗
21
6H1438311000
Connector, shaft
Loading…
↗
23
62Y438300100
Gear pump assembly
Loading…
↗
24
69A438410000
Piston, shuttle
Loading…
↗
25
69A4384M0000
Piston, shuttle 2
Loading…
↗
26
69A4384F0000
Seal, main valve
Loading…
↗
27
6H1438830000
O-ring
Loading…
↗
28
990800360000
Circlip(6l5)
Loading…
↗
29
935053203800
Ball(7fk)
Loading…
↗
30
CS34388F0000
Spacer
Loading…
↗
31
6T4438080000
Seat valve comp. 1
Loading…
↗
32
62Y438530000
WOMENS FITTED POLO -
Loading…
↗
33
932100600100
O-ring (26h)
Loading…
↗
35
62Y438550000
Spring, up relief
Loading…
↗
36
6H14384F1000
Seal, main valve
Loading…
↗
37
6H1438561000
Spring, down relief
Loading…
↗
38
6H1438441000
Pin, valve support
Loading…
↗
39
92A080311000
Screw set
Loading…
↗
40
953070360000
Nut(7rc)
Loading…
↗
41
62Y4382A0000
Adaptor 1
Loading…
↗
42
936042625600
Pin, dowel
Loading…
↗
43
CS3438160000
Filter 1
Loading…
↗
44
62Y4382L0000
Cap, relief valve
Loading…
↗
45
913180502000
Bolt, socket
Loading…
↗
46
913180500800
Bolt,socket
Loading…
↗
47
935010800100
Ball
Loading…
↗
48
62Y4384G0000
Relief Valve Seal
Loading…
↗
49
CS3438540000
Spring, manual release
Loading…
↗
50
62Y438940000
Spring, shuttle return
Loading…
↗
51
62Y4387J0000
Washer, special 2
Loading…
↗
52
CK5224340000
Plate, valve 1
Loading…
↗
53
CS3438710000
Ring, back up
Loading…
↗
54
62Y4387G0000
Washer
Loading…
↗
55
9020105M0400
Washer, plate
Loading…
↗
56
6H1438160000
Filter 1
Loading…
↗
58
913180604000
Bolt,socket
Loading…
↗
59
932101839700
O-ring (6g5)
Loading…
↗
60
6H1438750000
Ring, snap
Loading…
↗
61
CS3438450000
Screw, manual release
Loading…
↗
62
932100935000
O-ring
Loading…
↗
63
6H1438290000
Plug, reservoir
Loading…
↗
64
62X438650000
O-ring
Loading…
↗
