Yamaha Outboard Parts - Power Trim & Tilt Assy 2 - F100AET (2000) | Flood Marine

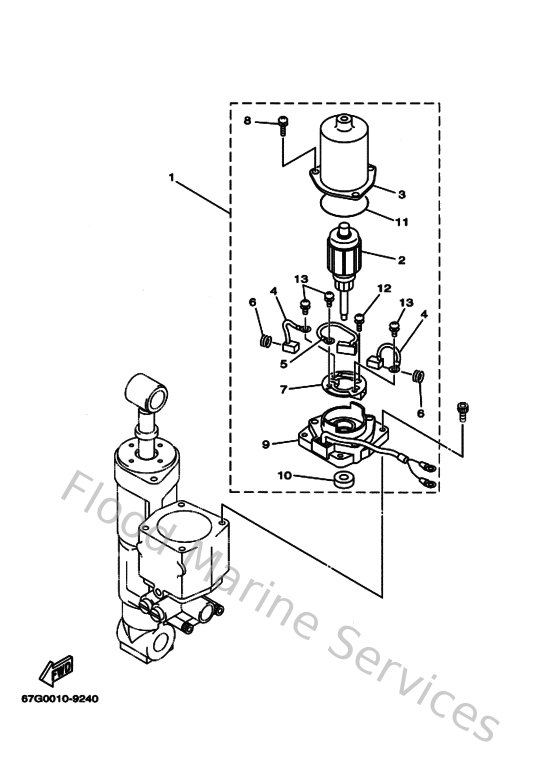

Diagram: Power Trim & Tilt Assy 2

Diagram

Parts List

Reference
Description
Price


1
67F438800000
Motor assembly
Loading…

↗
2
67F438050000
Armature assembly
Loading…

↗
3
67F438040000
Stator assembly
Loading…

↗
4
67F438910000
Brush 1
Loading…

↗
5
67F821810000
Circuit Breaker Comp
Loading…

↗
6
67F4386K0000
Spring, brush
Loading…

↗
7
67F4380F0000
Plate, brush holder
Loading…

↗
8
67F438860000
Bolt
Loading…

↗
9
67F438810000
Frame End
Loading…

↗
10
67F438820000
Oil Seal
Loading…

↗
11
67F438960000
O-ring
Loading…

↗
12
67F438870000
Bolt
Loading…

↗
13
67F438790000
Screw, with washer
Loading…

↗
