2BMH (1990)
Repair Kit

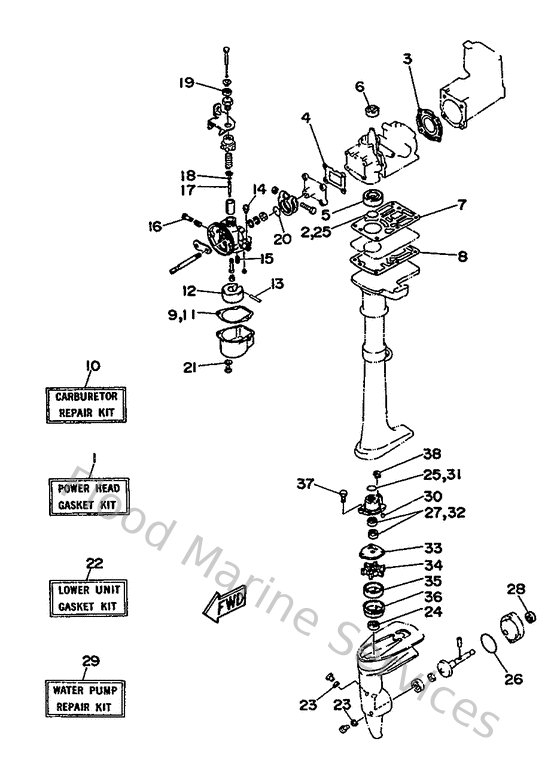

Diagram: Repair Kit
Parts List
Reference
Description
Price
1
6A1W00010100
Gasket kit, power unit
Loading…
↗
2
9321008M2900
O-ring (6a1)
Loading…
↗
3
646111810100
Gasket, cylinder head 1
Loading…
↗
4
6GDE36210000
Gasket, valve seat
Loading…
↗
5
931022007000
Oil seal
Loading…
↗
6
9310215M3200
Oil seal(6a1)
Loading…
↗
7
64614623A100
Gasket, exhaust
Loading…
↗
8
6A1146130100
Gasket,exhaust 1
Loading…
↗
9
6A1143840000
Gasket, float chamber
Loading…
↗
10
6A1W00930200
Carb Repair Kitkit
Loading…
↗
12
6A1143850000
Float
Loading…
↗
13
6A1143860000
Pin, float
Loading…
↗
14
985800401000
Screw, pan head (e56)
Loading…
↗
15
6A1143920000
Valve, needle
Loading…
↗
16
646142110200
Screw, pilot adjusting
Loading…
↗
17
6A1141161000
Needle
Loading…
↗
18
646141370000
Clip
Loading…
↗
20
646142290100
O-ring
Loading…
↗
21
6A1143980000
Gasket
Loading…
↗
22
6A1W00012300
Lower unit gasket kit
Loading…
↗
23
904300802000
Gasket
Loading…
↗
26
932104210100
O-ring (183)
Loading…
↗
27
9310111M4400
Oil seal(6a1)
Loading…
↗
28
931031005200
Oil seal (10x21x10-646)
Loading…
↗
29
6A1W00780200
Water pump repair kit
Loading…
↗
30
936040906800
Pin,dowel (646)
Loading…
↗
31
932101912300
O-ring (646)
Loading…
↗
33
646443230000
Outer plate,cartridge
Loading…
↗
34
646443520100
Impeller
Loading…
↗
35
646443220000
Insert, cartridge
Loading…
↗
36
6GDG43250000
Protector, oil seal
Loading…
↗
37
973900501600
Bolt, with washer
Loading…
↗
38
646443660100
Damper, water seal 2
Loading…
↗
