Yamaha Outboard Parts - Repair Kit 1 - 130BETOL (2000) | Flood Marine

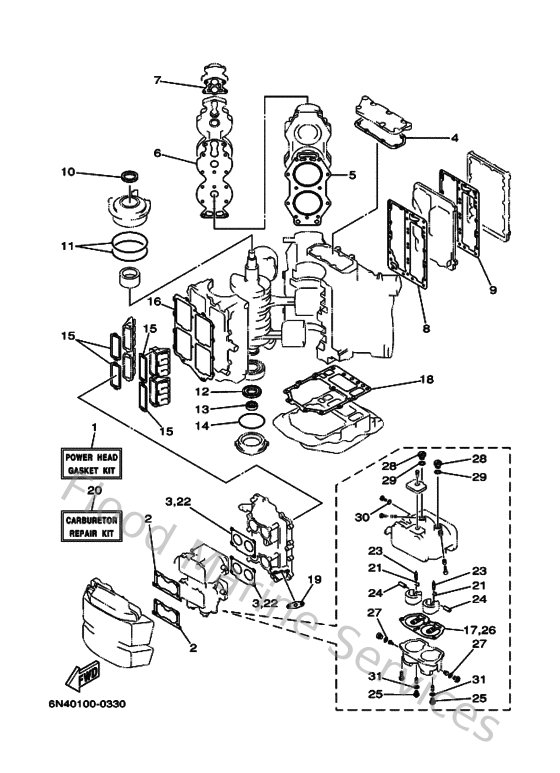

Diagram: Repair Kit 1

Diagram

Parts List

Reference
Description
Price


1
6N6W0001A400
Gasket kit
Loading…

↗
2
6K7144830000
Gasket
Loading…

↗
3
6E514198A200
Gasket
Loading…

↗
4
6E511381A200
Gasket 1
Loading…

↗
5
6E511181A200
Gasket, cylinder head 1
Loading…

↗
6
6E511193A000
Gasket, head cover 1
Loading…

↗
7
68812414A100
Gasket, cover
Loading…

↗
8
6E541112A100
Gasket, exhaust inner cover
Loading…

↗
10
9310240M3800
Oil seal(61a)
Loading…

↗
11
9321104M3600
O-ring (705)
Loading…

↗
12
9310235M1300
Oil seal (6e5)
Loading…

↗
13
9310122M1500
Oil seal (6e5)
Loading…

↗
14
9321074M3500
O-ring (6e5)
Loading…

↗
15
6E513621A100
Gasket, valve seat
Loading…

↗
16
6E513645A100
Gasket, manifold 1
Loading…

↗
17
64D143840100
Gasket, float chamber
Loading…

↗
18
6G545113A100
Gasket, upper casing
Loading…

↗
19
65024431A000
Gasket,fuel pump
Loading…

↗
20
6N6W00930800
Carburetor repair kit
Loading…

↗
21
6E5141590000
Clip
Loading…

↗
23
6E5145460000
Valve, needle
Loading…

↗
24
6E5143860200
Pin, float
Loading…

↗
25
64D143940000
Valve, drain
Loading…

↗
26
64D143840000
Gasket, float chamber
Loading…

↗
27
6E5143980000
Gasket
Loading…

↗
28
6E5143280100
Plug
Loading…

↗
29
6E5149790000
Gasket
Loading…

↗
30
6J8149590000
Gasket, drin screw
Loading…

↗
31
61U149590000
Gasket
Loading…

↗
