55BM (1990)
Repair Kit 1

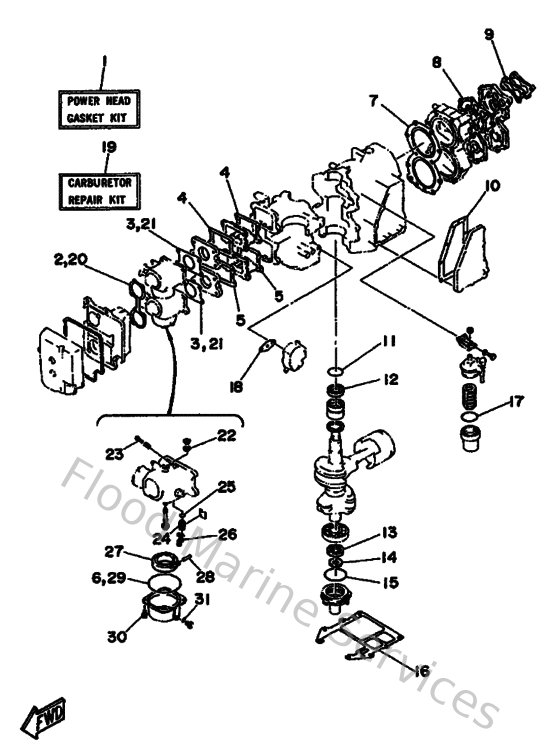

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
697W00010000
Gasket kit, power unit
Loading…
↗
2
663144830000
Gasket, plate
Loading…
↗
3
663141980000
Gasket
Loading…
↗
4
66313621A000
Packing, valve seat 1
Loading…
↗
5
663136220000
Packing, valve seat 2
Loading…
↗
6
932106427200
O-ring (663) (carb)
Loading…
↗
7
69711181A200
Gasket, cylinder head 1
Loading…
↗
8
663111930000
Gasket, head cover
Loading…
↗
9
663124140000
Gasket, thermostat
Loading…
↗
10
66341114A000
Gasket, exhaust outer cover
Loading…
↗
11
932104215900
O-ring (647)
Loading…
↗
12
9310232M0700
Oil seal (697)
Loading…
↗
13
931022813500
Oil seal (28x47x7-663)
Loading…
↗
14
931041804900
Oil seal (18x30x5-663)
Loading…
↗
15
932106226900
Ring, o(663)
Loading…
↗
16
696451130000
Gasket,upper casing
Loading…
↗
17
9321037M2500
O-ring (655)
Loading…
↗
18
650244310000
Gasket,fuel pump
Loading…
↗
19
696W00930200
Carburetor repair kit
Loading…
↗
22
679145570000
Washer (carb)
Loading…
↗
23
663149230000
Screw, adjust
Loading…
↗
24
696145900000
Needle valve assembly
Loading…
↗
25
932100722900
O-ring (371)
Loading…
↗
26
676141860000
Pin, valve
Loading…
↗
27
6F0149850000
Float comp.
Loading…
↗
28
663145480000
Pin, arm
Loading…
↗
30
901590400700
Screw, pan head (686)
Loading…
↗
31
932100423000
O-ring (371)
Loading…
↗
