Yamaha Outboard Parts - Repair Kit 2 - 30HMH (2001) | Flood Marine

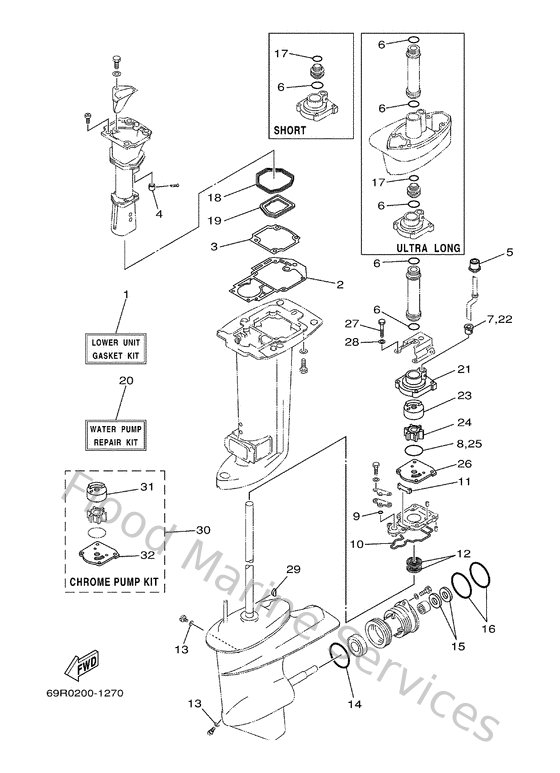

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
69PW00012000
Lower unit gasket kit
Loading…

↗
2
68945113A100
Gasket, upper casing
Loading…

↗
3
69P41134A000
Gasket, exhaust manifold
Loading…

↗
4
6A8411350000
Gasket, exhaust manifold 3
Loading…

↗
5
689443660000
Damper, water seal 2
Loading…

↗
6
932102613000
O-ring
Loading…

↗
7
6L2443670000
Damper, water seal 3
Loading…

↗
8
932104516100
O-ring
Loading…

↗
9
9321006ME600
O-ring
Loading…

↗
10
61N453150000
Packing, lower casing
Loading…

↗
11
61N451270000
Seal
Loading…

↗
12
931012206700
Oil seal (22x36x6-663)
Loading…

↗
13
904300802000
Gasket
Loading…

↗
14
9321064ME700
O-ring
Loading…

↗
15
9310120M0700
Oil seal
Loading…

↗
16
9321065M5000
O-ring
Loading…

↗
17
932102229800
O-ring
Loading…

↗
18
69P411380000
Seal, ext. 1
Loading…

↗
19
69P411390000
Seal, ext. 2
Loading…

↗
20
69PW00780000
Water pump repair kit
Loading…

↗
21
69P443110000
Housing, water pump
Loading…

↗
23
69P443220000
Insert, cartridge
Loading…

↗
24
6H4443520200
Impeller
Loading…

↗
26
61N443230000
Outer plate, cartridge
Loading…

↗
27
970950604000
Bolt (682)
Loading…

↗
28
929950660000
Washer, plain (646)
Loading…

↗
29
9028003M0300
Key, woodruff (697)
Loading…

↗
30
69PW00780A00
Chrome pump kit
Loading…

↗
31
69P443224000
Insert, cartridge
Loading…

↗
32
61N443234000
Outer plate, cartridge
Loading…

↗
