F45A (1996)
Repair Kit 4 (F50B)

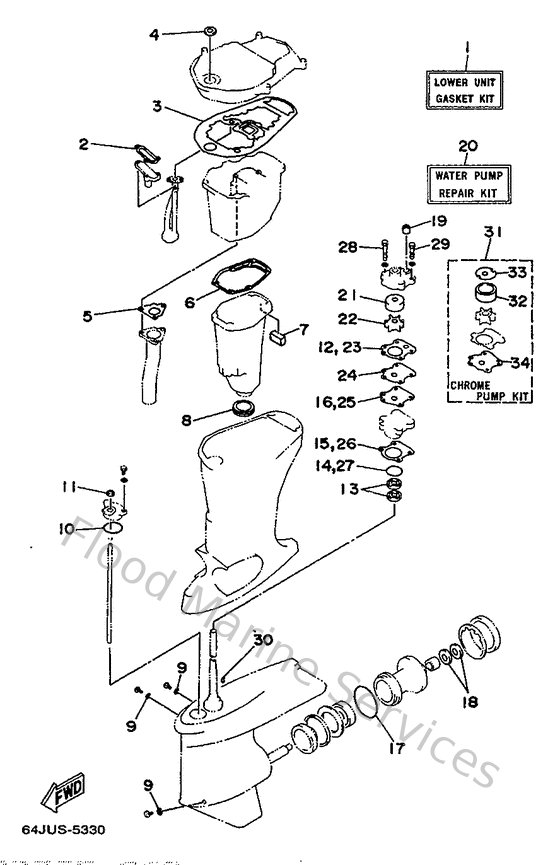

Diagram: Repair Kit 4 (F50B)
Parts List
Reference
Description
Price
1
64JW00012000
Lower unit gasket kit
Loading…
↗
2
62Y134750000
Gasket
Loading…
↗
3
62Y153120000
Gasket, oil pan
Loading…
↗
4
9310116M3600
Oil seal(6a8)
Loading…
↗
5
62Y411330000
Gasket, exhaust manifold 1
Loading…
↗
6
6BG411340000
Gasket, exhaust manifold
Loading…
↗
7
62Y451270000
Seal
Loading…
↗
8
663451230000
Gasket, muffler
Loading…
↗
9
904300800300
Gasket
Loading…
↗
10
932104904600
O-ring (620)
Loading…
↗
11
931060901400
Oil seal
Loading…
↗
12
6H344315A000
Gasket,water pump 1
Loading…
↗
13
931012307000
Oil seal (663)
Loading…
↗
14
932104604400
O-ring
Loading…
↗
15
68844316A000
Gasket,water pump 2
Loading…
↗
16
6H344324A000
Gasket,cartridge 0ut,plate
Loading…
↗
17
9321085M9700
O-ring(6h1)
Loading…
↗
18
9310125M0300
Oil seal
Loading…
↗
19
663443660000
Damper, water seal 2
Loading…
↗
20
6H3W00780100
Water pump repair kit
Loading…
↗
21
663443220000
Insert, cartridge
Loading…
↗
22
6H3443520000
Impellar
Loading…
↗
24
6H3443230000
Outer plate, cartridge
Loading…
↗
28
970950804500
Bolt, hexagon
Loading…
↗
29
970950805500
Bolt, hexagon
Loading…
↗
30
9028003M0300
Key, woodruff (697)
Loading…
↗
31
6H3W00780A00
Chrome pump kit
Loading…
↗
32
670443220100
Insert, cartridge
Loading…
↗
33
670443210000
Inner plate, cartridge
Loading…
↗
34
6H3443234000
Outer plate, cartridge
Loading…
↗
