25DMH (1987)
Starter

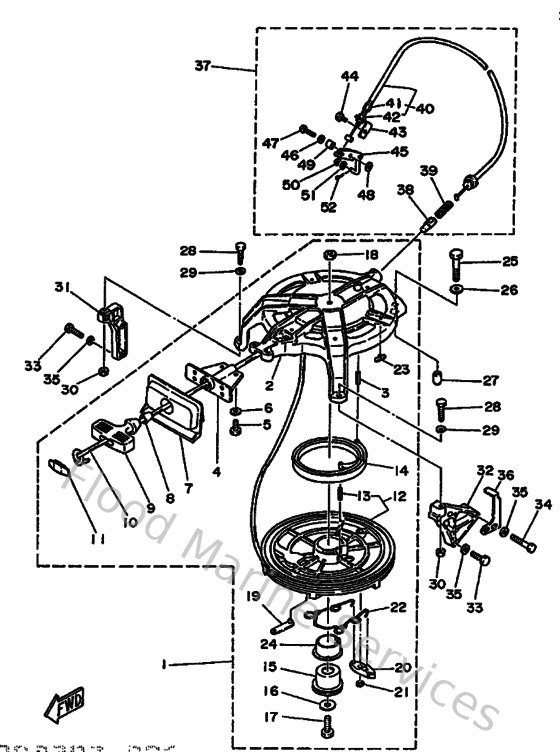

Diagram: Starter
Parts List
Reference
Description
Price
1
689157100000
Starter assembly
Loading…
↗
2
676157110094
Case, Starter
Loading…
↗
3
916904002000
Pin, spring
Loading…
↗
4
689157580194
Guide De Cable
Loading…
↗
5
970950601600
Bolt, hexagon deep recess
Loading…
↗
6
929030660000
Washer, plain (646)
Loading…
↗
7
689157620100
Seal, Rubber 2
Loading…
↗
8
689157890000
Damper
Loading…
↗
9
619157550100
Handle, starter
Loading…
↗
11
689157790100
Cover
Loading…
↗
14
9051009M0000
Spring, starter (676)
Loading…
↗
15
676157170000
Shaft, Starter
Loading…
↗
16
902010830900
Washer, Plate
Loading…
↗
17
973130802500
Bolt (682)
Loading…
↗
18
953030860000
Nut(6l2)
Loading…
↗
19
676157990100
Clip
Loading…
↗
20
676157410300
Pawl, drive
Loading…
↗
21
9343006M0200
Circlip (689)
Loading…
↗
22
676157050000
Spring, pawl drive
Loading…
↗
23
676157730000
Stay 3
Loading…
↗
24
9038635M0100
Bushing (676)
Loading…
↗
25
973130803500
Bolt
Loading…
↗
26
929900860000
Washer, plain (663)
Loading…
↗
27
995301201600
Pin, dowel
Loading…
↗
28
973130603000
Bolt
Loading…
↗
29
929900660000
Washer, plain (646)
Loading…
↗
30
953030660000
Nut(661)
Loading…
↗
31
6H7157710094
Stay 1
Loading…
↗
32
656157720000
Stay 2
Loading…
↗
33
973130602500
Bolt
Loading…
↗
34
970130604500
Bolt, hexagon
Loading…
↗
36
689813320100
Plate, timming
Loading…
↗
38
656157480000
Plunger, starter stop
Loading…
↗
39
905011022700
Spring, comprreshion(656)
Loading…
↗
40
656157700000
Wire Comp Starter Stop
Loading…
↗
41
9012306M0000
Bolt(6A9)
Loading…
↗
43
689157740000
Stay 4
Loading…
↗
44
973130601000
Bolt
Loading…
↗
45
656157490000
Link comp, starter stop
Loading…
↗
46
902060801000
Washer(656)
Loading…
↗
47
970800602000
Bolt(7u8)
Loading…
↗
49
903870656800
Collar (3l6)
Loading…
↗
50
929030560000
Washer, plain (646)
Loading…
↗
51
902060500500
Washer, wave(656)
Loading…
↗
52
914901601000
Pin, cotter
Loading…
↗
