Yamaha Outboard Parts - Starter - 40HM (1987) | Flood Marine

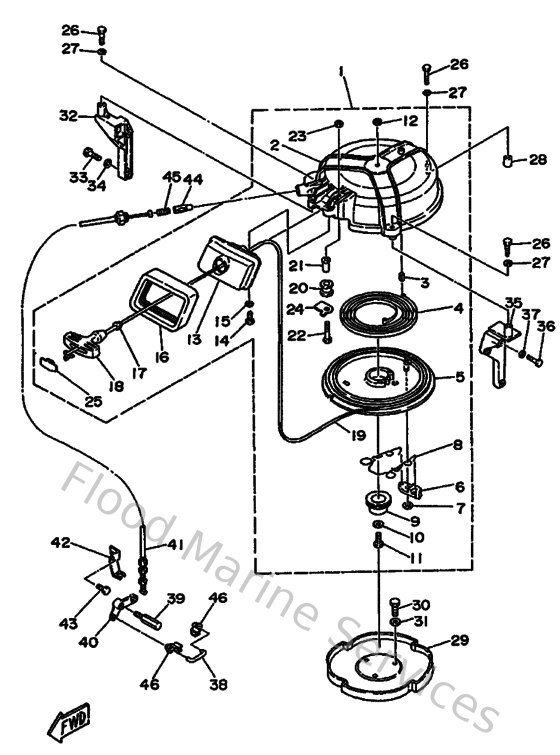

Diagram: Starter

Diagram

Parts List

Reference
Description
Price


1
6H4157100194
Starter assembly
Loading…

↗
2
6H4157110194
Case, starter
Loading…

↗
3
916904001800
Pin spring(664)
Loading…

↗
4
905100800200
Spring spiral 656157130000
Loading…

↗
5
6H4157140000
Drum, sheave
Loading…

↗
6
676157410300
Pawl, drive
Loading…

↗
7
9343006M0200
Circlip (689)
Loading…

↗
8
6H4157050000
Spring drive pawl assembly
Loading…

↗
9
6H4157170000
Shaft, starter
Loading…

↗
10
902010606000
Washer, plate
Loading…

↗
11
973130602000
Bolt(7u8)
Loading…

↗
12
953800660000
Nut(661)
Loading…

↗
13
6H4157580094
Guide, Rope
Loading…

↗
14
973130601600
Bolt, hexagon deep recess
Loading…

↗
15
929030660000
Washer, plain (646)
Loading…

↗
16
6H4157620000
Seal, rubber 2
Loading…

↗
17
697157890000
Damper
Loading…

↗
18
619157550100
Handle, starter
Loading…

↗
21
9038706M6600
Collar (6h4)
Loading…

↗
22
973130603500
Bolt(3rv)
Loading…

↗
24
6H4157870000
Stay
Loading…

↗
25
689157790100
Cover
Loading…

↗
28
918302101400
Pin, dowel
Loading…

↗
30
970130801600
Bolt, hexagon
Loading…

↗
31
929030860000
Washer, plain (663)
Loading…

↗
33
973130803000
Bolt
Loading…

↗
34
929901010000
Ybs67-10 washer, spring
Loading…

↗
35
6H4157720094
Stay 2
Loading…

↗
36
973130602500
Bolt
Loading…

↗
39
9010906MA100
Bolt
Loading…

↗
41
6H4157701000
Cable Comp., Starter Stop
Loading…

↗
43
973130601200
Bolt(gh1)
Loading…

↗
44
656157480000
Plunger, starter stop
Loading…

↗
45
905011022700
Spring, comprreshion(656)
Loading…

↗
46
661412620200
Joint, choke lever
Loading…

↗
