25DMH (1987)
Steering

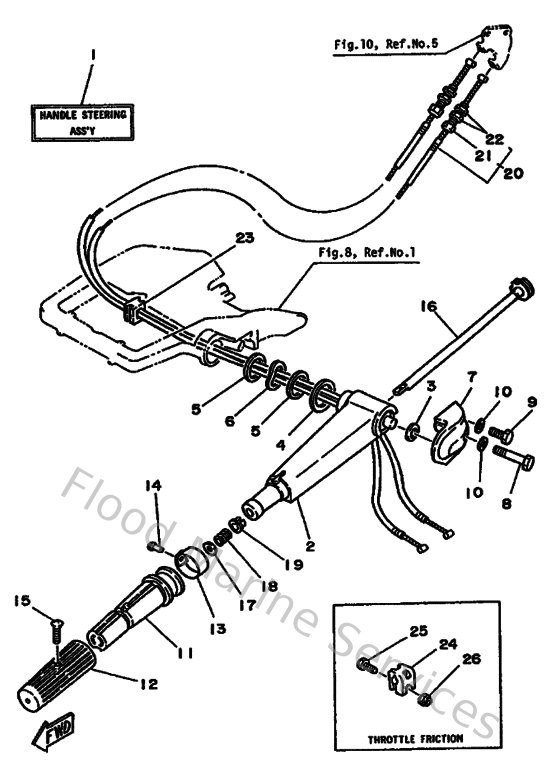

Diagram: Steering
Parts List
Reference
Description
Price
2
6944211100EJ
Handle, Steering
Loading…
↗
3
905601407600
Spacer 648421550000
Loading…
↗
4
902023404300
Spacer Handle 2 (648)
Loading…
↗
5
9020128M2800
Washer, Plate
Loading…
↗
6
9020628M0700
Rondelle, Ondulee
Loading…
↗
7
6894211200EJ
Steering Handle 2
Loading…
↗
8
970800605000
Bolt(jf7)
Loading…
↗
9
973950602000
Bolt(7u8)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
664421190000
Grip, steering handle
Loading…
↗
12
6G1421770000
Rubber, handle
Loading…
↗
13
695421370300
Indicator, Throttle
Loading…
↗
14
9026902M0900
Rivet(6l5)
Loading…
↗
15
986800552500
Ybs53-525 screw,flat head
Loading…
↗
16
689421380000
Lever, throttle
Loading…
↗
17
929031060000
Washer, plate
Loading…
↗
18
905012321500
Spring (655)
Loading…
↗
19
903860803200
Bushing (650)
Loading…
↗
20
6J0263110200
Cable, throttle 1
Loading…
↗
21
9012306M0000
Bolt(6A9)
Loading…
↗
22
901700618300
Nut, hexagon(664)
Loading…
↗
23
904801215600
Grommet
Loading…
↗
24
656421260100
Piece, friction
Loading…
↗
26
901850606200
Nut selflocking (656)
Loading…
↗
