Yamaha Outboard Parts - Steering - 40QMH (1997) | Flood Marine

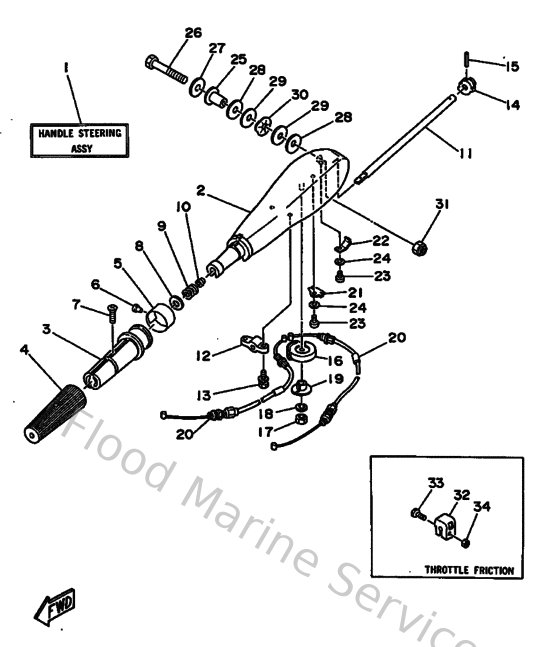

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
6R6W0084014D
Handle Steering Assembly (Ref. #2~34)
Loading…

↗
2
67642111024D
Handle, steering
Loading…

↗
3
664421190000
Grip, steering handle
Loading…

↗
4
6G1421770000
Rubber, handle
Loading…

↗
5
6R6421370000
Indicateur, Acceleration
Loading…

↗
6
9026902M0900
Rivet(6l5)
Loading…

↗
7
901520501100
Screw, countersunk
Loading…

↗
8
929901060000
Washer, plate
Loading…

↗
9
905012321500
Spring (655)
Loading…

↗
10
903860803200
Bushing (650)
Loading…

↗
11
676421150000
Shaft, steering handle
Loading…

↗
12
676421590000
Stay
Loading…

↗
13
975950652000
Bolt(7u8)
Loading…

↗
14
650421520094
Gear
Loading…

↗
15
916903002500
Pin, spring
Loading…

↗
16
676421510094
Pinion
Loading…

↗
17
953800660000
Nut(661)
Loading…

↗
18
929950610000
Washer(6a1)
Loading…

↗
19
9038608M0000
Bushing (676)
Loading…

↗
20
6E9263110000
Throttle wire comp
Loading…

↗
21
676263910000
Clip, wire 1
Loading…

↗
22
676263920000
Clip, wire 2
Loading…

↗
23
970950501000
Bolt (682)
Loading…

↗
24
929900560000
Washer, plain (646)
Loading…

↗
25
903861208900
Bushing(663)
Loading…

↗
26
9010112M3700
Bolt (676)
Loading…

↗
27
929901220000
Ybs66-12 washer,plain
Loading…

↗
28
902021209200
Washer, plate(663)
Loading…

↗
29
902011253700
Washer, plate(663)
Loading…

↗
30
902061205400
Washer, wave(663)
Loading…

↗
31
901851205800
Nut, nylon(663)
Loading…

↗
32
656421260100
Piece, friction
Loading…

↗
33
970950602000
Bolt(7u8)
Loading…

↗
34
901850606200
Nut selflocking (656)
