Yamaha Outboard Parts - Steering - E40XMH (2001) | Flood Marine

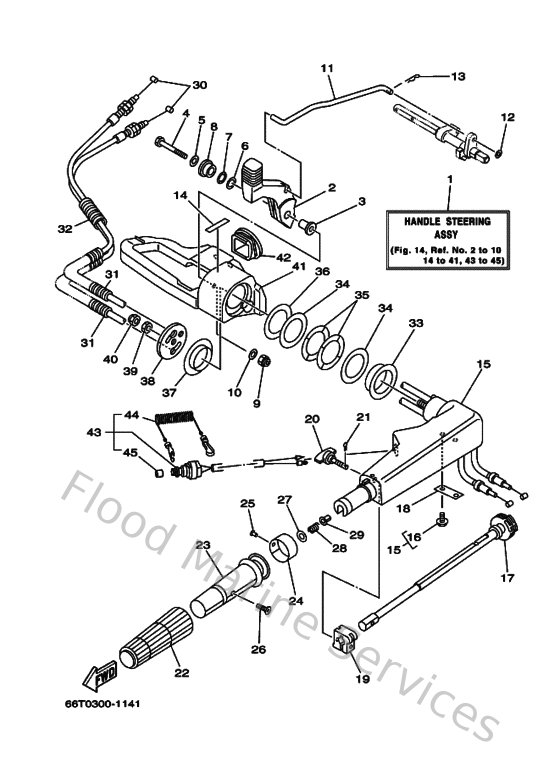

Diagram: Steering

Diagram

Parts List

Reference
Description
Price


1
66TW0084024D
Handle steering assembly
Loading…

↗
2
66T441110200
Handle, gear shift
Loading…

↗
3
9038706M8600
Collar
Loading…

↗
4
970950605000
Bolt(jf7)
Loading…

↗
5
929900660000
Washer, plain (646)
Loading…

↗
6
9020112M0700
Washer, plate
Loading…

↗
7
902061205200
Washer, wave (666)
Loading…

↗
8
66T421230000
Bolt, handle joint
Loading…

↗
9
957800630000
Nut, nylon (6g1)
Loading…

↗
10
929950620000
Ybs66-6 washer, plain
Loading…

↗
11
66T441240000
Link, shift rod
Loading…

↗
12
929900620000
Ybs66-6 washer, plain
Loading…

↗
13
904681800800
Clip 620436610000
Loading…

↗
14
6E0441911100
Indicator, shift
Loading…

↗
15
65W42101014D
Handle, steering
Loading…

↗
16
9010906M8600
Bolt
Loading…

↗
17
65W421380000
Lever, throttle
Loading…

↗
18
65W421590000
Stay
Loading…

↗
19
6G1421260000
Piece, friction
Loading…

↗
20
65W421250000
Bolt, friction adjusting
Loading…

↗
21
914902001000
Pin, cotter
Loading…

↗
22
6F642177A000
Rubber, handle
Loading…

↗
23
664421190000
Grip, steering handle
Loading…

↗
24
6G1421371000
Indicator, throttle
Loading…

↗
25
9026902M0900
Rivet(6l5)
Loading…

↗
26
9014905M1300
Screw, countersunk
Loading…

↗
27
929031060000
Washer, plate
Loading…

↗
28
905012321500
Spring (655)
Loading…

↗
29
903860803200
Bushing (650)
Loading…

↗
30
66T263010000
Throttle cable assembly
Loading…

↗
31
9044610M8700
Hose
Loading…

↗
32
9044610M8600
Hose
Loading…

↗
33
66R421710000
Bushing
Loading…

↗
34
9020143M0000
Washer, plate
Loading…

↗
35
9020643M2200
Washer, wave
Loading…

↗
36
9020243M5700
Washer, plate
Loading…

↗
37
9038640M9900
Bush
Loading…

↗
38
65W421310100
Cover, handle steering
Loading…

↗
39
953801070000
Nut (682)
Loading…

↗
40
957801030000
Nut, nylon (6e5)
Loading…

↗
41
65W42121014D
Bracket
Loading…

↗
42
66T412730000
Grommet
Loading…

↗
43
66T825750100
Engine stop switch assembly
Loading…

↗
44
682825560000
Lanyard, stop switch
Loading…

↗
45
6898257Y0000
Cap
