225DETOL (1997)
Top Cowling

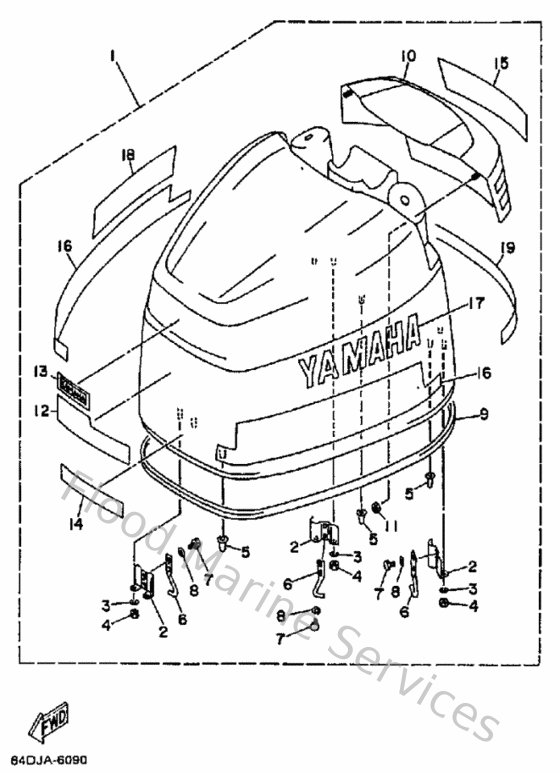

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
64F42610404D
Top Cowling Assembly
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
64D428140000
Hook, clamp
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
64D426150000
Seal
Loading…
↗
10
64D42613004D
Molding, air duct
Loading…
↗
11
9017906M2400
Nut(6j8)
Loading…
↗
15
64F426870000
Emblem, Rear
Loading…
↗
17
64D426814000
Mark, cowling
Loading…
↗
18
64D426824000
Mark, cowling
Loading…
↗
