Yamaha Outboard Parts - Upper Casing - F15AMH (1998) | Flood Marine

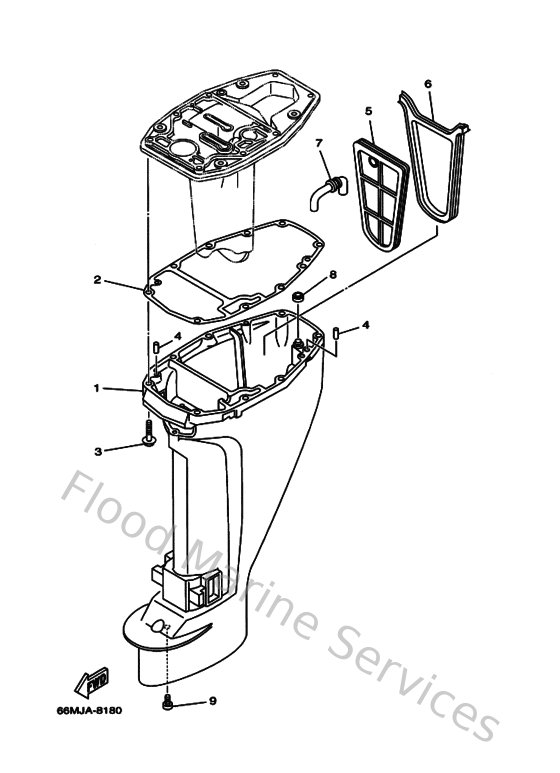

Diagram: Upper Casing

Diagram

Parts List

Reference
Description
Price


1
66M45111004D
Casing, upper
Loading…

↗
2
66M451130000
Gasket, upper casing
Loading…

↗
3
975750854500
Bolt, hexagon w/w deep recess
Loading…

↗
4
936061201900
Pin, dowel (614)
Loading…

↗
5
66M451260000
Plate, Seal Damper
Loading…

↗
6
66M451150000
Gasket, upper casing
Loading…

↗
7
66M451360000
Pipe
Loading…

↗
8
66M451280000
Seal 2
Loading…

↗
9
9015706M0600
Screw, pan head(6m7)
Loading…

↗
