4ACMH (1988)
Upper Casing & Bracket

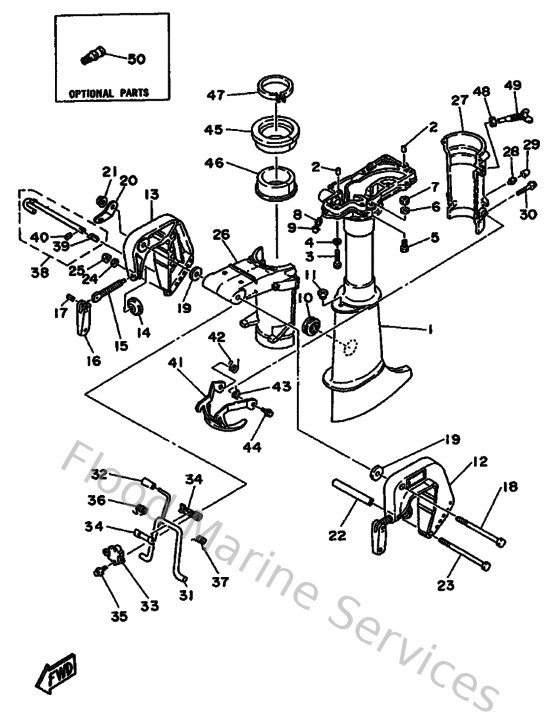

Diagram: Upper Casing & Bracket
Parts List
Reference
Description
Price
2
936061201900
Pin, dowel (614)
Loading…
↗
3
973950603000
Bolt(jf7)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
973950601600
Bolt, hexagon deep recess
Loading…
↗
7
9538R0670000
Nut
Loading…
↗
8
937000600400
Nipple, grease(6a1)
Loading…
↗
9
663451190000
Cap, grease nipple
Loading…
↗
10
647451510100
Cover, upper casing
Loading…
↗
11
9048010M1300
Grommet (6e0)
Loading…
↗
14
648431140100
Pad, transom clamp
Loading…
↗
15
6E0431160100
Screw, transom clamp
Loading…
↗
16
6E0431180000
Handle, transom clamp
Loading…
↗
17
9025404M0000
Pin(6a1)
Loading…
↗
18
9010108M0700
Bolt(6e0)
Loading…
↗
19
9020108M0300
Washer, plate(6e0)
Loading…
↗
20
6A1431130000
Plate, clamp bracket
Loading…
↗
21
901850805700
Nut, nylon (6j8)
Loading…
↗
22
9038706M1100
Collar
Loading…
↗
23
901010633500
Bolt, hexagon (624)
Loading…
↗
25
953800660000
Nut(661)
Loading…
↗
30
958950603500
Bolt, flange(4nx)
Loading…
↗
31
6E0431810000
Lever, tilt stop 1
Loading…
↗
32
6E0436320000
Knob, tilt
Loading…
↗
33
6E0433130094
Bracket, swivel 3
Loading…
↗
34
620431890000
Bushing
Loading…
↗
35
958950602000
Bolt, flange(jk3)
Loading…
↗
36
905081602000
Spring 6474319800
Loading…
↗
37
905081602100
Spring 6474318800
Loading…
↗
38
6E0431600100
Tilt rod assembly
Loading…
↗
39
689431650000
Plate, tilt lock
Loading…
↗
40
916903000800
Pin. spring(656)
Loading…
↗
41
6E043614009M
Plate, tilt lock
Loading…
↗
42
9050814M1000
Spring, torsion (6e0)
Loading…
↗
43
9050814M1100
Spring, torsion (6e0)
Loading…
↗
44
958950601000
Bolt, flange(7ht)
Loading…
↗
46
999990333100
Bushing, Pivot Shaft
Loading…
↗
47
6E0425280300
Plate, friction
Loading…
↗
48
953800860000
Nut (661)
Loading…
↗
49
6E0425290200
Screw, Friction Pc
Loading…
↗
50
6E0281930094
Plug, water check
Loading…
↗
