F15AMH (1998)
Valve

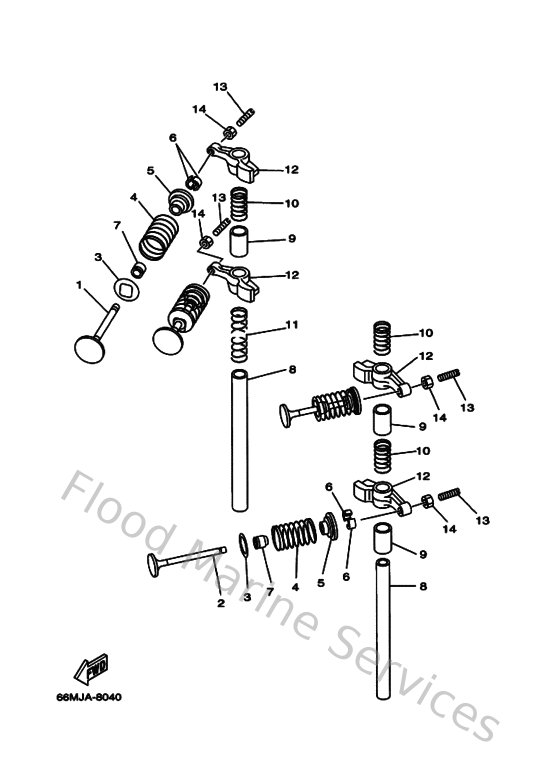

Diagram: Valve
Parts List
Reference
Description
Price
1
66M121110000
Valve, intake
Loading…
↗
2
66M121210000
Valve, exhaust
Loading…
↗
3
66M121160000
Seat, valve spring
Loading…
↗
4
66M121130000
Spring, valve inner
Loading…
↗
5
30X121170000
Retainer, valve spring
Loading…
↗
6
30X121180000
Cotter, valve
Loading…
↗
7
6EEE21190000
Seal, valve stem
Loading…
↗
8
66M121460000
Shaft, rocker
Loading…
↗
9
9038713M5600
Collar (6g8)
Loading…
↗
10
9050112M4000
Spring, compression (6g8)
Loading…
↗
11
9050112M4100
Spring Compression (6G8)
Loading…
↗
13
62Y121590000
Screw Valve Adjusting
Loading…
↗
14
62Y121580000
Nut, lock
Loading…
↗
